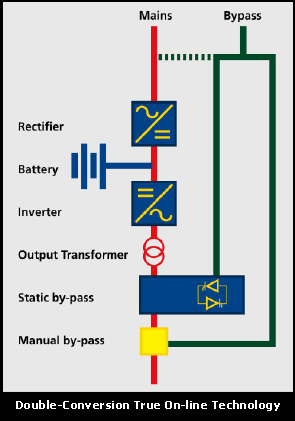

The Supreme Plus power capacity range from 100-120-160-200 kVA three phase models and uses double conversion online technology (VFI) with an isolation transformer on the inverter output.
The load is powered continuously by the inverter with a filtered, stabilized and regulated sinewave supply. The input and output EMI filters considerably increase the
immunity of the load to mains disturbances and surges.
|
 |
|
|
|
 |
|
|
|
SUPREME
PLUS |
|
|
|
Supreme Plus is equipped with BATTERY PROTECTION. This helps to prolong battery life and performance.
It has:
-
Two voltage level charging
-
Temperature compensation charging
-
Self battery test
-
Compatibility with open vented lead acid and NiCad battery
|
 |
|
|
|
MAIN FEATURES |
|
|
-
Reliable, filtered,
stabilized and regulated sinewave output (double
conversion on-line technology VFI according to EN50091-3
specifications) with filters for atmospheric disturbance
suppression
-
High reliability: IGBT technology, full microprocessor control with no-break static and manual bypass
-
High level diagnostics: event log with 128 messages, states, measurements and alarms available from the built-in LCD in several languages
-
The UPS may be configured with the RS232 serial port (flash upgradable)
-
Reduced noise levels: high frequency inverter bridge used (>16 kHz: above audible range)
-
Low loss high frequency up to 94% in on-line mode utilizing IGBT
technology and up to 98% in the other operating modes:
Economy Mode, Smart Active Mode, and Standby/Off Mode.
- Economy Mode: uses Line Interactive (VI) technology to power less critical loads from the mains supply for certain periods. The function can be set from the front panel keypad or remotely using software
|
|
|
EASY OF
INSTALLATION AND SIMPLIFIED MAINTENANCE |
|
|
|

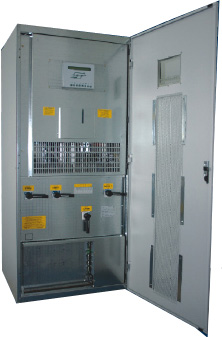

Supreme Plus UPS occupies only 800 x 800 (mm) foot print. It can be positioned against the wall, thanks to the upward ventilation.
Access fro maintenance is entirely from the front of the unit. Power and electronic components are easily accessible from the front for maintenance and repair work. This particular feature means that the MTTR (Mean Time to Repair) is typically less than 30 minutes.
A large amount of maintenance information is available from the front mimic panel and LCD. In addition, system operating parameters are software configurable via a local PC to allow new functions to be added or adjustments made to operating specifications.
100 -200-160-200 kVA
Front Accessible for
Simplified Maintenance |
 |
|
 |
|
|
-
Low harmonic pollution in Supreme Plus CLEAN version the electronic digital control: (Optional)
- very low distortion (THDi < 3%)
-

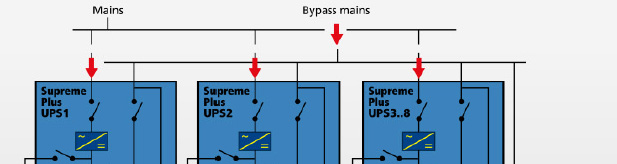

Maximum reliability and power availability connect up to 8 units in parallel or N+1 redundancy, UPS Group Synchronizer (UGS) and Parallel System Joiner (PSJ)
-
High level battery reliability:
- Automatic battery test
- Recharge compensated for temperature
- Battery care. Battery life span can be increased approximately by 20% more
-
Emergency operation: the UPS can be set to operate only when the mains fails (for emergency lighting)
-
Back feed protection: to avoid energy feeding back into the mains supply
-
Bypass may be deactivated to allow operation as a frequency converter (at 50 or 60 Hz), or as stabilizer
-
Easy to maintain (front access)
|
 |
|
|
|
|
 |
|
|
|
DISTRIBUTION

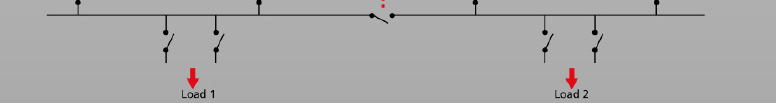

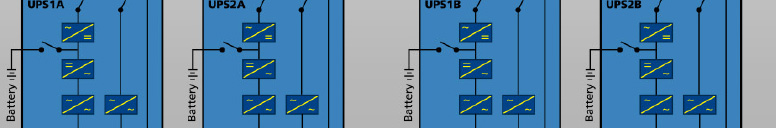

REDUNDANCY: PSJ |
|
|
|
 |
|

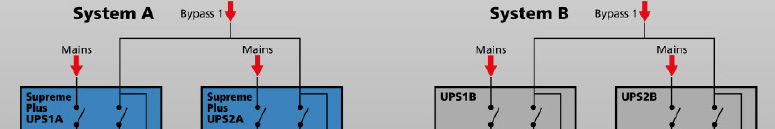

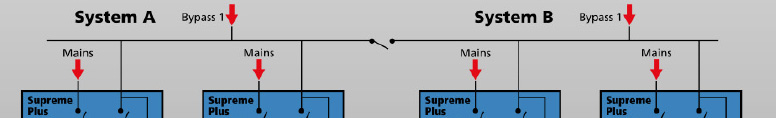

The Parallel Systems Joiner (PSJ) enables the connection of two
UPS groups operating in parallel configuration through a power coupling switch.
The Slave group is permanently synchronized to the Master Group. Should one of
the UPS in one of the parallel groups fails, the PSJ will automatically connect
the remaining UPS to other group
|
|
|
|
UPS

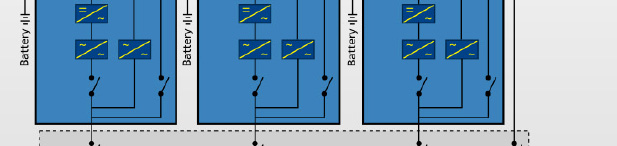

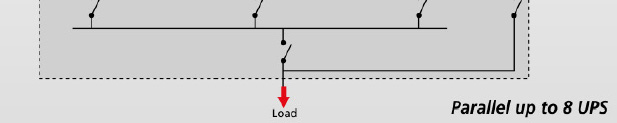

REDUNDANCY: PARALLEL |
|
|
|
 |
|
|
 |
|
|
|

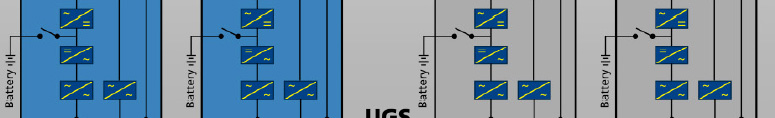

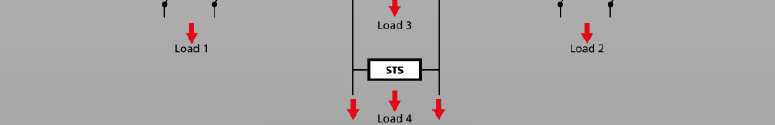

DISTRIBUTION REDUNDANCY: UGS |
|
|
|
 |
|

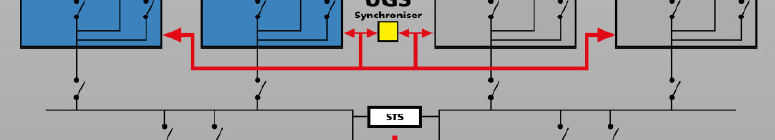

UPS Group Synchronizer (UGS) ensures 2 or more UPS parallel groups remain
synchronized even during a mains supply failure.
The UGS also enables Supreme Plus to be synchronized with independent
power source and even with different rating.
|
|
|
|
SUPREME
PLUS UPS SPECIFICATIONS |
|
|
|
MODELS |
Supreme
Plus 100 |
Supreme
Plus 120 |
Supreme
Plus 160 |
Supreme
Plus 200 |
|
POWER (kVA) /
(KW) |
100/80 |
120/96 |
160/128 |
200/160 |
|
INPUT |
|
Nominal Voltage
|
380 400 415 Vac three phase |
|
Voltage Tolerance |
+20%, -25% |
|
Frequency |
45 χ 65 Hz |
|
Power Factor |
0.9 to 0.96 depending on options |
|
Current Distortion |
< 3% with Clean Version |
|
Soft Start |
0 to 120s selectable |
|
Standard Fittings |
Back Feed Protection; separable bypass line |
|
BATTERIES |
|
Type
|
Vented acid / VRLA AGM / GEL / NiCd |
|
Residual Ripple on Voltage |
< 1% |
|
Temperature compensation |
-0, 5 VxoC |
|
OUTPUT |
|
Number of phases |
3 phases + N |
|
Nominal Voltage |
380 400 415Vca three phase + N |
|
Static Stability |
+ 1% |
|
Dynamic Stability |
+ 5% in 10msec |
|
Voltage Distortion With Linear Load
|
< 1% |
|
Voltage Distortion With Distorting Load
|
< 3% (According to IEC62040-3) |
|
Frequency: Without mains Present |
50 to 60 Hz configurable (+ 2%, selectable from
+ 1% to + 5%) |
|
Frequency: Without mains Present |
+ 0.05% |
|
Waveform |
Sinusoidal |
|
Crest Factor |
3:1 |
|
Overload |
110% for 60 ; 125% for 10 ; 150% for 1 |
|
ENVIRONMENTAL |
|
Remote Reports |
Voltage-free contacts
|
|
Remote commands |
ESD and bypass |
|
Communication |
Double RS232 + Remote Contacts + 2 Communication Interface Slots |
|
Efficiency |
Up to 94% |
|
Dimensions (L x D x H): Standard |
800x800x1900 |
|
Dimensions (L x D x H): 6P + CN |
1070x800x1900 |
|
Dimensions (L x D x H):
12P |
1070x800x1900 |
1200x800x1900 |
|
Dimensions (L x D x H):
12PCN |
1070x800x1900 |
1200x800x1900 |
|
Weight (kg)
|
600 |
650 |
750 |
800 |
|
Noise Level |
60 to 65 dBA@ 1m |
|
Operating Temperature |
0oC/
+40oC |
|
Relative Humidity
|
< 95% non condensing |
|
Index of Protection
|
IP20 |
|
Color
|
RAL 7035 |
|
Standards
|
Directives EEC 73/23 93/68 89/336
Safety IEC EN 62040 1; EMC IEC En 62040-2;
Performance IEC EN 62040 3
|
|
Classification as per IEC 62040-3
|
(Voltage Frequency Independent) VF1-SS-111 |
|
Option:
CN for 5% THDi, 12P for 8% THDi & 12PCN for 3% THDi; Remote Monitor Panel;
Communication Software & Accessories; Isolation transfer;
Parallelable to 8 units
|
|
Note: Due to continuous product
improvement technical specifications are subject to
change without prior notice. |
|
|
|
 |
TECHNICAL
ASSISTANCE
SERVICES
UPService,
our
technical
assistance facility uses highly
trained
engineers to provide a
reliable
and competent technical
support
and after sales service |
|
|
|
|
UPService can provide customers with: |
|
|
-
A dedicated CALL
CENTER for connection to the UPService
organization. UPService personnel are always
available and ready to provide advice and assistance
regarding UPS installation, maintenance, fault
finding and repair
-
FAST & READY
A fast repair on site is guaranteed through the use
of state-of the-art UPS technology and the
professionalism of the UPService personnel and
Authorized Assistance Centers.
UPService guarantees that failed parts are replaced with original ones,
tested and updated in order to maintain the safety, reliability and operating characteristics of the UPS.
-
COMMISSIONING
AND START_UP
UPService can provide assistance during commissioning and start-up of the UPS
equipment on-site with additional training during handover to site personnel.
UPService engineers can also verify site suitability, analyse and advice on potential problems,
and disconnect and relocate equipment. UPService recommend that all hardwired installations are
commissioned by UPService engineers.
-
MAINTENANCE
CONTRACTS can be provided by UPService to minimize
response times periodic inspections to comprehensive
cover including labour and materials.
-
The
TELEGUARD
software package provides remote 24 x 7 UPS
supervision. TeleGuard can interrogate G-TEC UPS
connected to a local telephone line to check on
their operating logs and systems status.
Should the UPS report an alarm condition, the UPService Call Center is immediately notified
and a dedicated customer response activated. Routine site reports can be sent automatically
to customer personnel.
-
UPService organizes
regular TECHNICAL TRAINING COURSES for UPS operators
and installers.
|
|
Communication Solutions |
|
|
-
Compatible with
TELE GUARD for remote maintenance
-
Advanced,
multi-platform communication, for all Operating

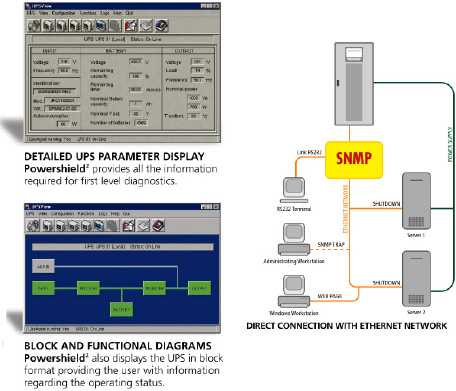

systems and network environments: PowerShield2
supervision and shut-down software included,
with SNMP agent, for Windows 95,98, 2000, ME,
XP, Mac OSx, 9.x, Linux, NT 4.0, Novell
operating systems. The UPS is equipped with a
cable for direct connection to the PC (Plug and
Play)
-
Can also provide
shut-down software for: IBM AIX, free BSD, BSDI
UNIX, BSD/OS, Unixware, SCO Openserver, Solaris,
SUN, DEC, Compaq True64, HP UNIX, SGI lrix MIPS,
NCR UNIX
-
Double RS232 serial
port
-
Network adapter
slot for SNMP agent
-
EPO (Emergency Power
Off) shut down input contact
-
Remote control
panel (optional)
|
 |
|
|
* All the trademarks indicated are
the property of their respective owners. |
|
|
