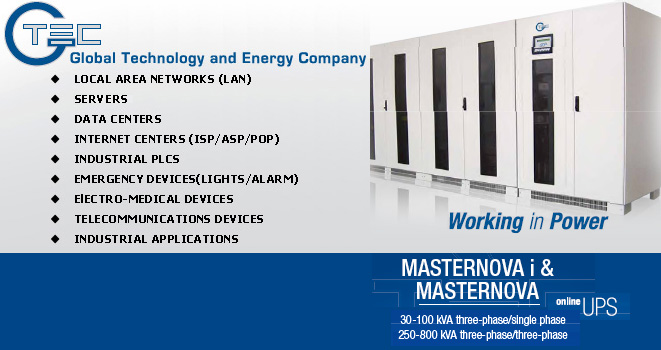

MASTERNOVA |
|
|
|
The Masternova i and
Masternova range include 250-300-400- 500-600-800
kVA three phase models and 30-40-60-80-100 kVA
three/single phase. Both models are true online

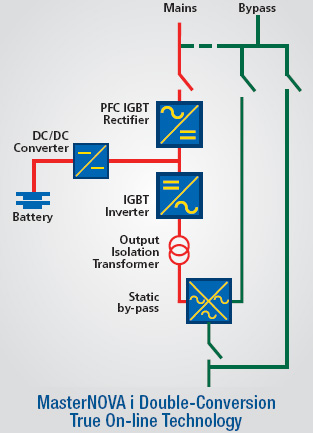

double conversion technology (VFI) with Inverter
output isolation transformer.
MasterNOVA i 300-400-500 kVA, MasterNOVA
30-40-60-80-100 kVA are designed with output nominal
power with power factor 0.9
The load is powered continuously by the inverter
with a filtered, stabilized and regulated sinewave
supply. The input and output EMI filters
considerably increase the immunity of the load to
mains disturbances and surges.
MasterNOVA provides maximum protection for vital
"mission critical" networks, security applications (electro-medical)
and industrial applications, thanks to its
outstanding mechanical and electrical design.
-
Isolation transformer on the inverter
-
Extremely high short-circuit current
-
Sinusoidal absorption
(THDi up to 3% with CLEAN version)
Specific Solutions
MasterNOVA can
be adapted to your requirements.
Please contact G-TEC Asia Paci c Pte Ltd to discuss
specific applications and options |
 |
|
|
|
|
MAIN FEATURES |
|
|
-
Low harmonic pollution, input current THDi ≤ 3%
-
Maximum reliability and power availability - connect up to 8 units in parallel or N+1 redundancy, UPS Group Synchroniser (UGS) and Parallel System Joiner (PSJ)
-
High battery management:
- Automatic battery test
- Temperature compensated charging available
- Recharge compensated for temperature
- Battery care. Battery life span can be increased approximately by 20% more
-
Emergency operation: the UPS can be set to operate only when the mains fails (for emergency lighting)
-
Back feed protection: to avoid energy feeding back into the mains supply
-
By pass may be deactivated to allow operation as a frequency converter (at 50 or 60 Hz), or as stabiliser
-
Easy to maintain (front access)
|
|
|

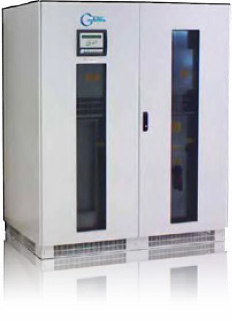

SIMPLIFIED MAINTENANCE |
|
|
|
Access fro maintenance is entirely from the front of the unit. Open the
door and remove the protective panel (standards
requirement) and the power components - mounted on a
sliding tray - can be pulled out to provide easy
access to all the electrical and electronic components
for maintenance and repair work.
This particular feature means that the MMTR (Mean Time to Repair) is typically less than 30 minutes.
A large amount of maintenance information is available from the front mimic panel and LCD.

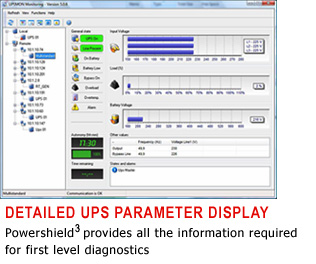

In addition, system operating parameters are software configurable via a local PC to allow new functions to be added or adjustments made to operating specifications.
 |
|
|
-
Reliable, filtered, stabilised and regulated sinewave output
(double on-line conversion technology VFI according to EN50091-3 specifications) with filters
for atmospheric disturbance suppression
-
MasterNOVA i achieved entirely with IGBT and with special DSP controlled
IGBT Rectifier. Thus gurantees maximum performance and high quality power for any IT and industrial load.
-
High reliability: IGBT
technology, full microprocessor control with no-break
static and manual bypasses
-

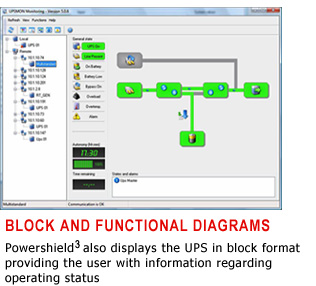

High diagnostic capability
- event log with 128 messages, status, measurement and
alarm-available from the
built-in LCD screen in several languages.
-
The UPS may be configured
with the RS232 serial port (flash up-gradable)
-
Reduced noise levels: high frequency inverter bridge used (>16 kHz: above audible range)
-
Low loss high efficiency up to 94% in On-line mode utilizing IGBT technology and up to 98% in the other
operating modes:
Economy Mode, Smart Active Mode, and Standby/Off Mode.
- Economy Mode: uses Line Interactive (VI) technology to power less critical loads from the mains supply
for certain periods. The function can be set from the front panel keypad or remotely using software.
|
|
|
|
|
|
COMMUNICATION SOLUTIONS |
|
|
|
ADVANCED COMMUNICATION
-
Compatible with TELEGUARD for remote maintenance
-
Advanced, multi-platform communication, for all operating systems and
network environments: PowerShield2 supervision and shut-down software included, with SNMP agent,
for Windows 95, 98, 2000, Me, XP, Mac OSx, 9.x, Linux, NT 4.0, Novell operating system. The UPS is
equipped with a cable for direct connection to the PC (plug and Play)
-
Can also provide shut-down software for: IBM AIX; Free BSD; BSDI UNIX;
BSD/OS; Unixware; SCO Opanserver; Solaris; SUN; DEC; Compaq True64; HP UNIX; SGI Irix MIPS; NCR UNIX
-

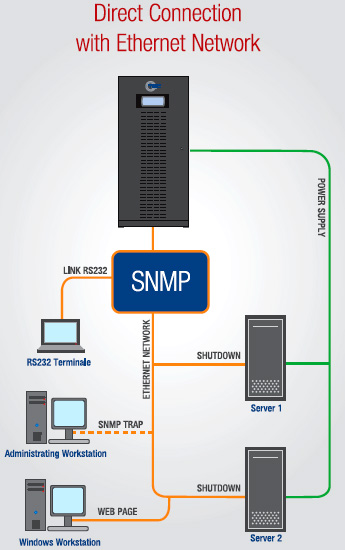

Double RS232 serial port
-
Network adapter slot for SNMP agent
-
EPO (Emergency Power Off) shut down input contact
-
Remote control panel (optional)
* All the
trademarks indicated are the property of their
respective owners. |
|
|
|
|
|
TECHNICAL ASSISTANCE SERVICE |
|
|
|
UPService, our technical assistance facility uses highly trained engineers to
provide a reliable and competent technical support and after–sales service.
UPService can provide customers with:
-
A dedicated
CALL CENTER for connection to the UPService
organisation. UPService personnel are always available and ready to provide advice and assistance
regarding UPS installation, maintenance, fault finding and repair.
-
FAST AND READY A fast repair on site is guaranteed through the
use of state-of-the-art UPS technology and professionalism of the UPService personnel and Authorized Assistance
Centers. UPService guarantees that failed parts are replaced with original ones, tested and updated in order
to maintain the safety, reliability and operating characteristics of the UPS.
-
COMMISSIONING AND START-UP UPService can provide assistance
during commissioning and start of the UPS equipment on-sit with additional training during handover to site
personnel. UPService engineers can also verify site suitability, analyze and advise to potential problems,
and disconnect and relocate equipment. UPService recommend that all hardwired installations are
commissioned by UPService engineers.
-
MAINTENANCE CONTRACTS can be provided by UPService to minimize
response times and repair costs. Contracts range from periodic inspections to comprehensive cover including
labor and materials.
-
The TELEGUARD software package provides remote 24x7 UPS supervision.
TeleGuard can interrogate G-TECH connected to a local telephone line check on their operating logs and system status.
Should the UPS report an alarm condition, the UPService Call Center is immediately notified and a dedicated customer
response activated. Routing site reports can be sent automatically to customer personnel.
-
UPService organize regular
TECHNICAL TRAINING COURSES for UPS operator
and installers.
|
|
|
|
|
|
MASTERNOVA (3 PHASE INPUT /1 PHASE OUTPUT) |
|
|
|
|
TECHNICAL
SPECIFICATIONS |
|
MODELS |
30
(3/1) |
40
(3/1) |
60
(3/1) |
80
(3/1) |
100
(3/1) |
|
INPUT |
|
Rated Voltage & Range (V)
|
400Vac 3 phase +20% -25% |
|
Frequency & Range |
50Hz/ 60Hz auto sensing, 45Hz to 65Hz |
|
Input power factor & THDi |
> 0.9 & < 5% with CN option |
|
BYPASS |
|
Frequency & Range
|
230Vac (selectable from 220V to 240V), + 15%
(adjustable from + 10% to + 25%) |
|
Frequency & Range (Hz) |
50Hz / 60Hz auto sensing
+ 2%. (Selectable from + 1% to + 6%) |
|
BATTERY |
|
Type |
VRLA battery; Vented lead acid battery & NiCad battery |
|
Charging Method |
Two level & Cyclic charging according to EN 50272-2 |
|
Ripple voltage |
Approximately 0% |
|
INVERTER OUTPUT |
|
Rated Power |
30kVA/ 27kW
|
40kVA/ 36kW
|
60kVA/ 54kW
|
80kVA/ 72kW
|
100kVA/ 90kW
|
|
Rated Voltage & Stability (V) |
220V / 230V / 240V, Single phase
+ 1% |
|
Frequency & Stability (Hz) |
50Hz/60Hz + 0.05% at free running; + 2% at synchronized mode (adjustable + 1% to + 6%) |
|
Dynamic Stability (V) |
+ 5% within 20ms to standard EN62040-3, class 1 |
|
Overload |
110% for 60mins; 125% for 10mins; 150% for 60sec |
|
ENVIRONMENTAL DATA |
|
Operating Temperature |
0oC to 40oC |
|
Relative Humidity
|
< 95% non condensing |
|
Color |
RAL 7035 light grey |
|
Efficiency
|
Up to 98% at ECO mode
|
|
Compliance Standard
|
European Directive LV2006/95/EC, EMC 2004/108/EC, Safety: IEC EN62040-1; EMC: IEC EN62040-2;
Performance & Test: IEC EN62040-3 |
|
Noise level @ 1m (dBA) |
62 |
63
|
|
Dimension L x D x H (mm) 6 Pulse |
555 x 740 x 1400 |
800 x 740 x 1400 |
800 x 800 x 1900 |
|
CN version |
825 x 740 x 1400 |
1070 x 740 x 1400 |
- |
|
Weight (kg) |
290 |
340
|
440 |
520 |
650
|
|
UPS Monitoring Software
Consult GTEC for details
|
WindowsXP (x86 & x64), 2003 (x86, x64 & ia64), Vista 2008, 7 / Novell Netware / Linux Redhat x86; x64,
ia64; Linux SuSE x86, x64; Linux Debian ia64, x64
MacOS X PowerC, Universal / Sun Solaris Sparc / Compac Tru64 / IBM AIX/ HP UX & Open VMS / FreeBSD /
OpenBSD / SGI Irix / SCO OpenServer, Unixware / HP-OpenView
|
|
Note: Due to continuous product
improvement technical specifications are subject to
change without prior notice. |
|
|
|
|
MASTERNOVA i 3 PHASE INPUT/OUTPUT (FULL IGBT UPS) |
|
|
|
|
TECHNICAL
SPECIFICATIONS |
|
MODELS |
250i
|
300i
|
400i
|
500i
|
|
INPUT |
|
Rated Voltage & Range (V)
|
400Vac, 3 phase +20% |
|
Frequency & Range |
50Hz/ 60Hz auto sensing, 45Hz to 65Hz |
|
Input power factor & THDi |
> 0.99 & <
3% |
|
BYPASS |
|
Rated Voltage (V)
|
380V/400V/415V + 15%
(adjustable from + 10% to + 25%) |
|
Frequency & Range (Hz) |
50Hz / 60Hz auto sensing
+ 2%. (Selectable from + 1% to + 6%) |
|
BATTERY |
|
Type |
VRLA battery; Vented lead acid battery & NiCad battery |
|
Charging Method |
Two level & Cyclic charging according to EN 50272-2 |
|
Ripple voltage |
Approximately 0% |
|
INVERTER OUTPUT |
|
Rated Power |
250kVA/ 200kW |
300kVA/ 270kW |
400kVA/ 360kW |
500kVA/ 450kW |
|
Rated Voltage & Stability (V) |
400V 3 phase + N (selectable 380V & 415V)
+ 1% |
|
Frequency & Stability (Hz) |
50Hz/60Hz + 0.05% at free running; + 2% at synchronized mode (adjustable + 1% to + 6%) |
|
Dynamic Stability (V) |
+ 5% within 20ms to standard EN62040-3, class 1 |
|
Overload |
110% for 60mins; 125% for 10mins; 150% for 60sec |
|
ENVIRONMENTAL DATA |
|
Operating Temperature |
0oC to 40oC |
|
Relative Humidity
|
< 95% non condensing |
|
Color |
RAL 7035 light grey |
|
Efficiency
|
Up to 98% at ECO mode
|
|
Compliance Standard
|
European Directive LV2006/95/EC, EMC 2004/108/EC, Safety: IEC EN62040-1; EMC: IEC EN62040-2;
Performance & Test: IEC EN62040-3 |
|
Noise level @ 1m (dBA) |
68 |
70 - 72 |
|
Dimension L x D x H (mm) 6 Pulse |
1000 x 850 x 1900 |
1500 x 1000 x 1900 |
2100 x 1000 x 1900 |
|
Weight (kg) |
1000 |
1550 |
1750 |
MMMMMM2000MMMMMM |
|
UPS Monitoring Software
Consult GTEC for details
|
WindowsXP (x86 & x64), 2003 (x86, x64 & ia64), Vista 2008, 7 / Novell Netware / Linux Redhat x86; x64,
ia64; Linux SuSE x86, x64; Linux Debian ia64, x64
MacOS X PowerC, Universal / Sun Solaris Sparc / Compac Tru64 / IBM AIX/ HP UX & Open VMS / FreeBSD /
OpenBSD / SGI Irix / SCO OpenServer, Unixware / HP-OpenView
|
|
Note: Due to continuous product
improvement technical specifications are subject to
change without prior notice. |
|
|
|
|
MASTERNOVA 3 PHASE INPUT/OUTPUT (12 PULSE RECTIFIER) |
|
|
|
|
TECHNICAL
SPECIFICATIONS |
|
MODELS |
250 |
300 |
400 |
500 |
MM600MM |
800 |
|
RATED POWER (kW) |
200 |
240 |
320 |
400 |
M480 |
640 |
|
INPUT |
|
Rated Voltage & Range (V)
|
400Vac 3 phase + 20% -
25% |
|
Frequency & Range |
50Hz/ 60Hz auto sensing, 45Hz to 65Hz |
|
Input power factor & THDi |
< 5%;> 0.93 |
< 7%;> 0.84 |
|
ENVIRONMENTAL DATA |
|
Operating Temperature |
0oC to 40oC |
|
Relative Humidity
|
< 95% non condensing |
|
Color |
RAL 7035 light grey |
|
Efficiency
|
Up to 98% at ECO mode
|
|
Compliance Standard
|
European Directive LV2006/95/EC, EMC 2004/108/EC, Safety: IEC EN62040-1; EMC: IEC EN62040-2;
Performance & Test: IEC EN62040-3 |
|
Noise level @ 1m (dBA) |
65 |
75 |
78 |
|
Dimension L x D x H
(mm) |
1630 x 850 x 1900 |
1630 x 1000 x 1900 |
3200 x 1000 x 1900 |
4400 x 1000 x 1900 |
|
Weight (kg) |
1700 |
1770 |
2045 |
3800 |
4200 |
5450 |
|
UPS Monitoring Software
Consult GTEC for details
|
WindowsXP (x86 & x64), 2003 (x86, x64 & ia64), Vista 2008, 7 / Novell Netware / Linux Redhat x86; x64,
ia64; Linux SuSE x86, x64; Linux Debian ia64, x64
MacOS X PowerC, Universal / Sun Solaris Sparc / Compac Tru64 / IBM AIX/ HP UX & Open VMS / FreeBSD /
OpenBSD / SGI Irix / SCO OpenServer, Unixware / HP-OpenView
|
|
Bypass, Battery & Inverter Output same as MasterNOVA
i
Note: Due to continuous product
improvement technical specifications are subject to
change without prior notice.
THDi
is
<
3% for CN version |
|
|
|
|
