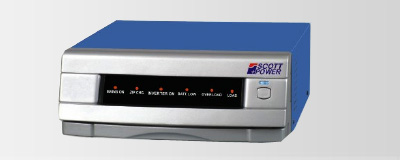

SCOTT POWER LONG BACKUP MODIFIED SQUARE WAVE INVERTER

Scott Power Long Backup Inverter is latest in the world of power backup systems. These Inverters are packed with user-friendly features and are symbols of convenience and comfort. These Inverters require very little maintenance and provides powerful performance with all-round protection.

FEATURES

Very high load cold start by the Inverter
Surface Mounted Technology for reliable and compact design
Zip-charge technology for faster charging and longer battery life
Intelligent Thermal Management
Free Pre-loaded Battery Management Software
Battery Charging at as low as 120V Mains Voltage
Miniature Circuit Breaker instead of fuse to protect load and equipments

LOAD CHART

RATING	600VA			800VA			1400VA
OPTIONS	Option 1	Option 2	Option 3	Option 1	Option 2	Option 3	Option 1	Option 2	Option 3
FAN	4	3	1	4	3	2	10	9	5
TUBE LIGHT	3	3	1	5	5	2	9	9	8
COMPUTER	x	x	1	x	x	1	x	x	1
TELEVISION	x	1	x	x	1	x	x	1	x

TECHNICAL SPECIFICATIONS*

	RATING	600VA	800VA	1400VA
INPUT	Regulated Mode
	Under Voltage	180 + 5V
	Under Voltage Restoration	185 + 5V
	Over Voltage	265 + 5V
	Over Voltage Restoration	260 + 5V
	Unregulated Mode
	Under Voltage	100 + 10V
	Under Voltage Restoration	110 + 10V
	Over Voltage	300 + 10V
	Over Voltage Restoration	290 + 10V
OUTPUT	Maximum Power	600VA	800VA	1400VA
	Voltage (Inverter Mode)	230V Nominal
	Voltage (Mains Mode)	Same as Input
	Frequency (Inverter Mode)	50 Hz. +/- 2%
	Frequency (Mains Mode)	Same as Input (45-55 Hz.)
	Overload	>110%
	Transfer Time (typical a.s)	10 ms.
BATTERY	Type	120 AH - 150 AH Lead Acid Type
	Voltage	12V
	Number	1	1	2
	Typical Recharge Time	10 - 12 Hrs.
	Protection	LOW BATTERY, REVERSE POLARITY
LED DISPLAY	Switch On	White
	Inverter On	Red
	Low Battery Pre-Alarm	Inverter On & Low Battery Red
	Battery Low	Red
	Mains On	Red
	Zip Charge	Red (Along with Mains On LED)
	Overload	Red
	Short Circuit	OVERLOAD BLINKING
	No Load Shut Down	Red
	Charging Fuse Blown	MAINS CONTINUOUS WITH ZIP CHARGE LED (BLINKING)
ALARMS	Low Battery Pre-Alarm	Inverter Beeping after every 10 Seconds
	Low Battery Trip	Inverter Beeping Continuously for 10 Seconds
	Mains to Inverter	Inverter Beeping every 2 Seconds for 5 Times
	Overload	Inverter Beeping Continuously for 10 Seconds
	Short Circuit	Inverter Beeping Continuously for 10 Seconds
	No Load Shut Down	Inverter Beeping Continuously for 10 Seconds
	Charging Fuse Blown	Inverter Beeping Continuously for 10 Seconds
ENVIRONMENTAL	Operating Temperature	0-40^oC (32-104^oF)
	Storage Temperature	0-40^oC (32-104^oF)
	Humidity	0-95% RH non-condensing

* Due to continuous product improvement technical specifications are subject to change without prior notice.
