ZP 110

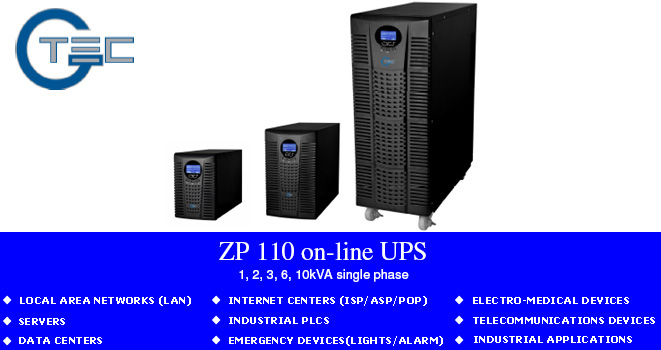

G-TEC is proud to introduce the latest DSP true on-line double conversion UPS for protecting small and medium size mission critical & IT load, so as to safeguard your valuable equipment and critical data from any abnormal power disturbances, such as surges, blackouts and lightning strikes.


ZP110 power capacity is available from 1-2-3-6-10kVA


ZP110 is fully digital signaling processor (DSP) controlled to provide quality supply, high reliability and high performance UPS.

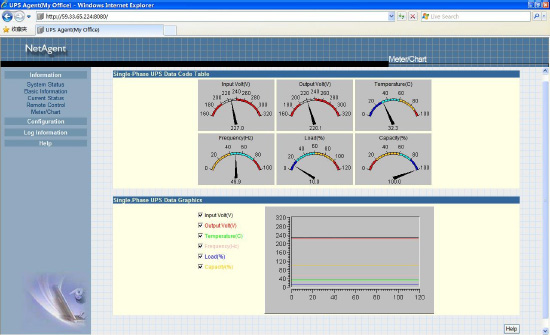

Software support most OS for remote monitor and control UPS through LAN, warning notifications through broadcast and mobile phone, multi-shutdown PCs, and schedule UPS self-test. This unique software provides complete power protection for computer system during power failure.



ZP 110 - DESIGN FEATURES


  • User friendly mimic panel, with LCD, LED and control push button

  • Designed with maximum efficiency at output power factor 0.8

  • Full DSP controlled, precision control and high reliability

  • Wide input voltage range, could accommodate the worst voltage fluctuation.

  • Generator compatible, excellent PFC performance with input power factor close to unity (0.99)

  • Optional battery extended socket, for long battery backup time

  • Communication slot for optional SNMP card; AS400 Dry Contact Card, SMART RS232 for configuration

  • Cold start function

  • Automatic self test function during start up

  • Parallel up to 4 UPS for 6kVA & 10kVA

  • Software for multi OS for remote monitoring and progressive shutdown software



ZP 110 ON-LINE UPS 1kVA to 3kVA



TECHNICAL SPECIFICATION

MODEL

ZP110 1K LCD

ZP110 2K LCD

ZP110 3K LCD

POWER RATING

1kVA/0.8kW

2kVA/1.6kW

3kVA/2.4kW

INPUT

Voltage

220V/230V/240V

Input low/ high voltage threshold
(Dependent on output load rate)



Load >90%          - Battery starts backup at AC 185V ±5V

Load 71% to 90% - Battery starts backup at AC 160V ±5V

Load 66% to 70% - Battery starts backup at AC 150V ±5V

Load 56% to 65% - Battery starts backup at AC 130V ±5V

Load ≤55%          - Battery starts backup at AC 110V ±5V

Nominal load        - Battery starts backup at AC 300V±5V



Rated Frequency

46Hz ~ 54Hz (adjustable)

Input Power Factor

0.99

BATTERY/CHARGER

Battery Type

Sealed lead acid maintenance free type

Backup Time @ Typical Load

8mins to 15mins depending on load

Optional Ex charger current

7Adc

OUTPUT

Voltage

220V/230V/240V

Voltage stability

+2%

Crest Factor

3:1

Voltage Distortion

< 3% at linear load

Frequency

50Hz (synchronizing up to + 8%)

Frequency at free running

50Hz + 0.2Hz

Output waveform

Sinusoidal

Overload @ 0.8pf load

105 % ~ 125 % for 50sec, 150% for 25 sec, > 150% for 300msec (Transfer to Bypass eventually)

Efficiency

85%

DISPLAY/INTERFACE

LCD Display

AC/ DC voltages; kVA/ kW; Frequency; Temperature; Battery & load level

LED Status Indicator

Utility power; Battery discharge; Inverter On

External Communication

RS232 / RJ11 / Optional Intelligent Slot

Control 3 control push button for POWER ON / POWER OFF / FUNCTION KEY

Communication software

Windows XP/ 2003; Linux; Unix

Optional

SNMP Card/ USB Card/ Dry Contact AS400 Card/ CMC Card/ RS485 Card/ EMD Monitoring Device

PHYSICAL DATA SHEET

Dimension (L x D x H) mm

144 x 350 x 229

190 x 328 x 424

Weight with battery (kg)

ZP110 1K LCD - 11.5

ZP110 2K LCD - 22.2

ZP110 3K LCD 26.3

Weight w/o battery, EX version

ZP110 1K LCD - 5.7

ZP110 2K LCD - 10

ZP110 3K LCD - 10

Operating Temperature

0oC to 40oC

Relative Humidity

Up to 90% non-condensing

Audible Noise @ 1m (dBA)

< 45

STANDARD

EMC  IEC 61000-4-2 Level 4/ IEC6100-4-3 Level3 / IEC61000-4-4 Level 4 / IEC 61000-4-5 Level 4 /
EN55022 Class B

Safety

IEC62040-1

Note: Due to continuous product improvement technical specifications are subject to change without prior notice.





ZP110 ON-LINE UPS - 6kVA to 10kVA



TECHNICAL SPECIFICATION

MODEL

ZP110  6K LCD ZP110  10K LCD
POWER RATING 6kVA/4.2kW 10kVA/8kW

INPUT

Voltage

220V/230V/240V

Input low/ high voltage
threshold
(Dependent on output load rate)



Load >90% - Battery starts backup at AC 175V ±5V

Load 71% to 90% - Battery starts backup at AC 165V ±5V

Load 50% to 70% - Battery starts backup at AC 150V ±5V

Load ≤50% - Battery starts backup at AC 120V ±5V

Nominal load - Battery starts backup at AC 274V±5V



Rated Frequency

46Hz to 54Hz (adjustable)

Power Factor

0.99

BATTERY/CHARGER

Battery type

Sealed lead acid maintenance free type

Back up time @ typical load 8mins to 15mins depending on load

* Optional EX charger current

7A dc

OUTPUT

Voltage

220V/230V/240V

Voltage stability

+1%

Voltage Distortion

< 2% at Linear load

 Frequency

50Hz (synchronizing up to ±8%)

Frequency at free running

50Hz ±0.1Hz

Output waveform

Sinusoidal

Overload @ 0.8pf load

105% - 125% for 60sec; 125% - 135% for 30sec; >135% for 100msec. (Transfer to Bypass eventually

Efficiency

>90%

DISPLAY/INTERFACE

LCD Display

AC/ DC voltages, kVA/ kW,  Frequency, Temperature, Battery & load level

LED Status Indicator

Utility power; Battery discharge, Inverter On

External Communication

RS232 / RJ11 / Optional Intelligent Slot

Control

3 control push button for POWER ON / POWER OFF / FUNCTION KEY

Communication software

Windows XP/ 2003, Linux, Unix

Optional

SNMP Card/ USB Card/ Dry Contact AS400 Card/ CMC Card/ RS485 Card/ EMD Monitoring Device

PHYSICAL DATA

Dimension (L x D x H) mm

260 x 560 x 717 (Standard) / 260 x 533 x 501 (Ex version)

Weight with battery (kg)

68

80

Weight w/o battery, Ex version 17.5 19.5

Operating Temperature

0oC to 40oC

Relative Humidity

Up to 95% non-condensing

Audible Noise @1m (dBA)

< 50

< 58

STANDARD

EMC

IEC 61000-4-2 Level 4/ IEC6100-4-3 Level3 / IEC61000-4-4 Level 4 / IEC 61000-4-5 Level 4 /
EN55022 Class B

Safety

IEC62040-1

Note: Due to continuous product improvement technical specifications are subject to change without prior notice.
